S202A-MC4
4 Cuboids
4 Cuboids
A new shape to improve your safety.
The NEW S202A-MC4 sensor is highly configurable and designed to cover a wide range of applications.
Ensuring maximum productivity and operator safety for your system has never been easier.

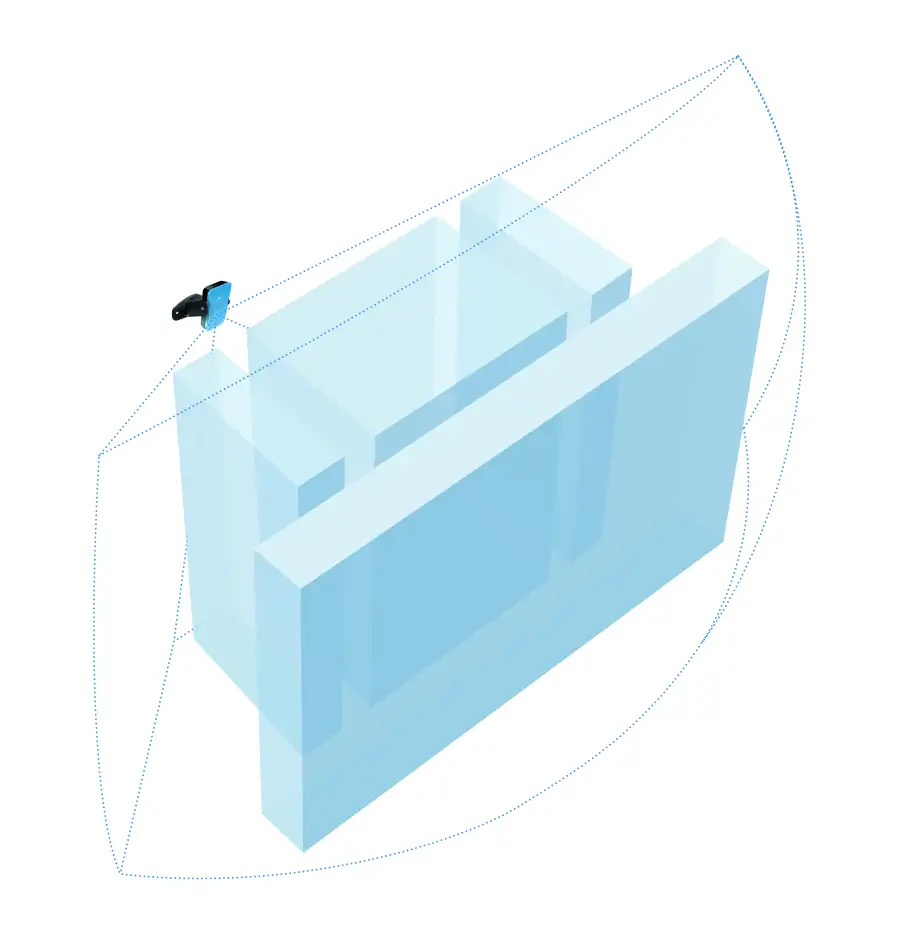

Configure up to 4 cuboids
Freely adjustable shapes: create up to 4 cuboids that best suit your application.
S202A-MC4 (4 cuboids)
As an alternative to the cuboid shape, you can also choose the Classic or Corridor shape.
Designed to cover your dangerous area
With the S202A-MC4 sensor you can create up to 4 cuboids that can perfectly fit any shape of the dangerous area, creating the perfect coverage.
Certified safety function
Freely design your cuboid
Increased productivity
Configuring Inxpect sensors is faster and more intuitive than ever before
Inxpect Safety Studio is the new software for configuration and validation of Inxpect radar sensors. Explore 3D design!
Technical details
RADAR SENSOR 200 SERIES (S202A-MC4)
| Frequency | Millimeter waves V-band: 60 GHz |
| Connectors | Two 5-pin M12 connectors (1 male and 1 female) |
| CAN bus termination resistance | 120 Ω (not supplied, to be installed with termination connector) |
| Power supply | 12 V dc ± 20%, through control unit |
| Power consumption | 2.6 W |
| Degree of protection | IP67 |
| Operating temperature | From -30 to +60 °C (-22 to +140 °F) |
| Case material | Sensor: PA66 (front) + Aluminum (back) | Bracket: PA66 and glass fiber (GF) |
Get all the documentation
Go to Inxpect Tools to explore technical documentation, configuration software and tools for your Inxpect product.
Dimensions
Inxpect Catalogue
Get the Inxpect catalogue to find out all information and specifics about our products.
