S203A-W
Vertical FOV 12°

5m
Range sensor
4s
Restart timeout
2m/s
Max target speed
12°
Vertical plane

Advanced FOV equipped with a vertical angular coverage of 12°, ideal for industrial environments with narrow and limited spaces.

Field of view
0 - 5m
[min. set distance: 0.2m]
Horizontal Plane: 10-100°
Vertical Plane: 12°

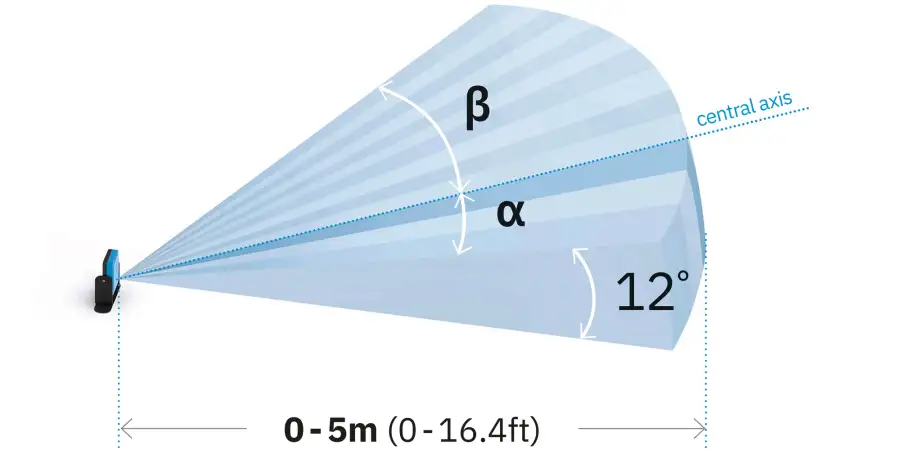

Asymmetrical FOV
α: 0°-50° β: 0°-50°

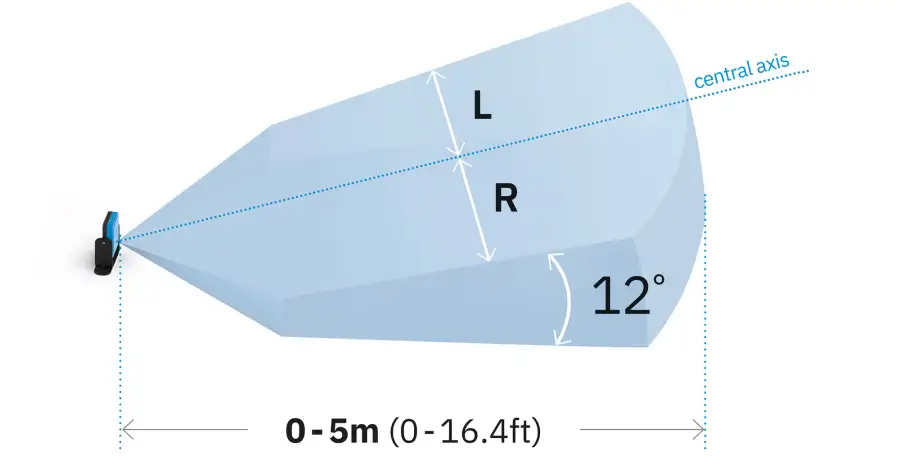

Corridor FOV
L + R ≥ 20cm
Four independent detection fields
Four independent detection fields with freely adjustable angles (10°-100°) with a maximum total distance of 5 m. The aperture of each field is dynamically adjustable in 5° increments over a range of 10° to 100°.
Asymmetrical FOV
α ≠ β
Corridor FOV
α = β = 50°

Quickly learn how to set up our products

These short tutorials are ready to unveil every aspect of our Smart Sensors. Watch, learn, and become an expert in no time.

Safety functions

Access protection

First safety function: a 3D, variable aperture virtual barrier with up to four different detection fields, providing a secure signal to control machinery.

Restart prevention

Second safety function: safe presence sensing to prevent machinery from starting as long as operators are in dangerous areas.

Access protection

First safety function: a 3D, variable aperture virtual barrier with up to four different detection fields, providing a secure signal to control machinery.

Restart prevention

Second safety function: safe presence sensing to prevent machinery from starting as long as operators are in dangerous areas.

Four configurable detection fields

Each sensor supports up to four different detection fields in 3D, each with a different safety output.

Advanced FOV

The S203A-W sensor has advanced field of view, i.e. the user can choose whether to use a symmetrical FOV, an asymmetrical FOV (asymmetric angles with respect to the central axis of the sensor) or a corridor FOV (with the sides cut off where required by the application)

Vertical angular coverage: 12°

The S203A-W has a vertical angular coverage of only 12° (instead of 20° in previous sensors), making it the most adaptable sensor for Autonomous Guided Vehicles (AGVs).

Static object detection

This option allows to detect static objects in the area where the restart prevention safety function is activated. This prevents the mobile device from restarting when there are obstacles in the area.

Robust to environmental disturbances

A radar sensor is extremely resistant to environmental disturbances. This makes it possible to work without false alarms in environments where there is smoke, dust, water and machining swarf.

Restart timeout

4s is the minimum time needed to perform the Restart Prevention safety function.

Technical details

SMART SENSOR 200 SERIES (S203A-W)
Frequency Millimeter waves V-band: 60 GHz
Connectors Two 5-pin M12 connectors (1 male and 1 female)
CAN bus termination resistance 120 Ω (not supplied, to be installed with termination connector)
Power supply 12 V dc ± 20%, through control unit
Power consumption 2.2 W
Degree of protection IP67
Operating temperature From -30 to +60 °C (-22 to +140 °F)
Case material Sensor: PA66 (front) + Aluminum (back) | Bracket: PA66 and glass fiber (GF)
Dimensions
Sensing field
3 axes adjustment
techDetailsDraws.block3.image-alt
