C201B-RA-C
CIP Safety™
CIP Safety™

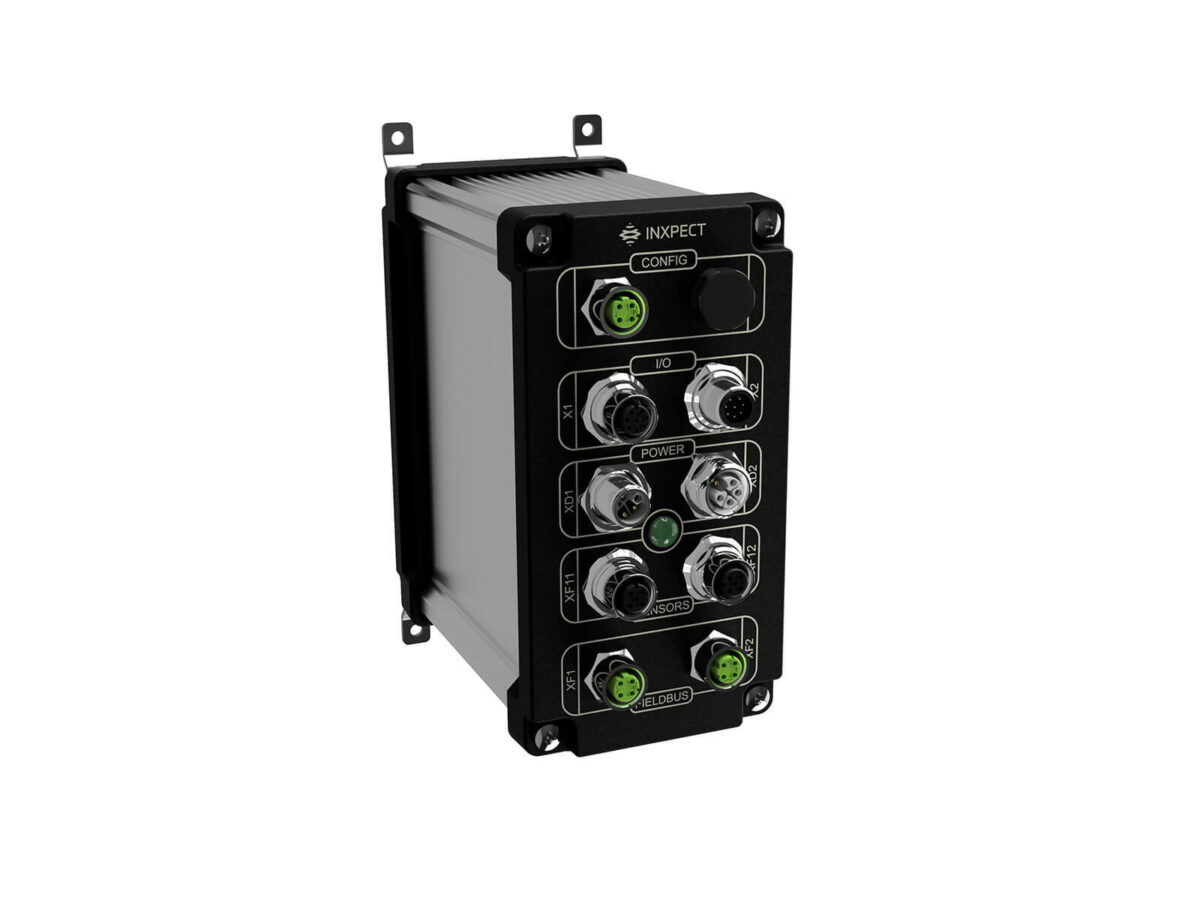

Inxpect's ruggedized Control Unit
Endurance redefined
C201B-RA-C
With CIP Safety™
The system is equipped with a Type B Control Unit.
Maximum safety
Even in dirty and wet environments.
Made for harsh environments
Broadband random vibration
In accordance with IEC 60068-2-64: Fn, Spectrum A.3, equipment in wheeled vehicles, Category 1 (8h/axis).
Sinusoidal and broadband vibration for ground vehicle installations
In accordance with IEC/EN 61496-1:2020 sec. 5.4.4.1 class 5M3 (IEC60068-2-6 and IEC 60068-2-64).
Shock test for ground vehicle installations
In accordance with IEC/FN614961:2020 sec. 5.4.4.2 class 5M3 (IEC 60068-2-27).
Get all the documentation
Go to Inxpect Tools to explore technical documentation, configuration software and tools for your Inxpect product.
Dimensions
Inxpect Catalogue
Get the Inxpect catalogue to find out all information and specifics about our products.
