S203A-WT

Vertical FOV 12° with the Teach-In function

Range sensor

Restart timeout

2m/s

Max target speed

12°

Vertical plane

Teach-in
function

Home > Products > Radar sensors > S203A-WT

Corridor FOV equipped with a vertical angular coverage of 12°, capable of adapting to changes in the surrounding environment, ideal for heavy industry and mining.

Field of view

0 - 5m
[min. set distance: 0.2m]
Horizontal Plane: 10-100°
Vertical Plane: 12°

Classic FOV (with symmetrical or asymmetrical shape)
α: 0°-50° β: 0°-50°

Corridor FOV (with symmetrical or asymmetrical shape)
L + R ≥ 20cm

Four independent detection fields

Four independent detection fields with freely adjustable angles (10°-100°) with a maximum total distance of 5 m. The aperture of each field is dynamically adjustable in 5° increments over a range of 10° to 100°.

Classic FOV (with symmetrical or asymmetrical shape)
α = β or α ≠ β

Corridor FOV (with symmetrical or asymmetrical shape)
L = R or L ≠ R

Safety first, also in heavy environment

In applications where environmental conditions frequently change, reconfiguring safety devices is crucial to maintaining system robustness without compromising safety. The S203A-WT sensor, equipped with the Teach-In function, enables fast "on-field" reconfiguration without requiring the configuration software (Inxpect Safety Studio).

Download the Heavy Industry brochure

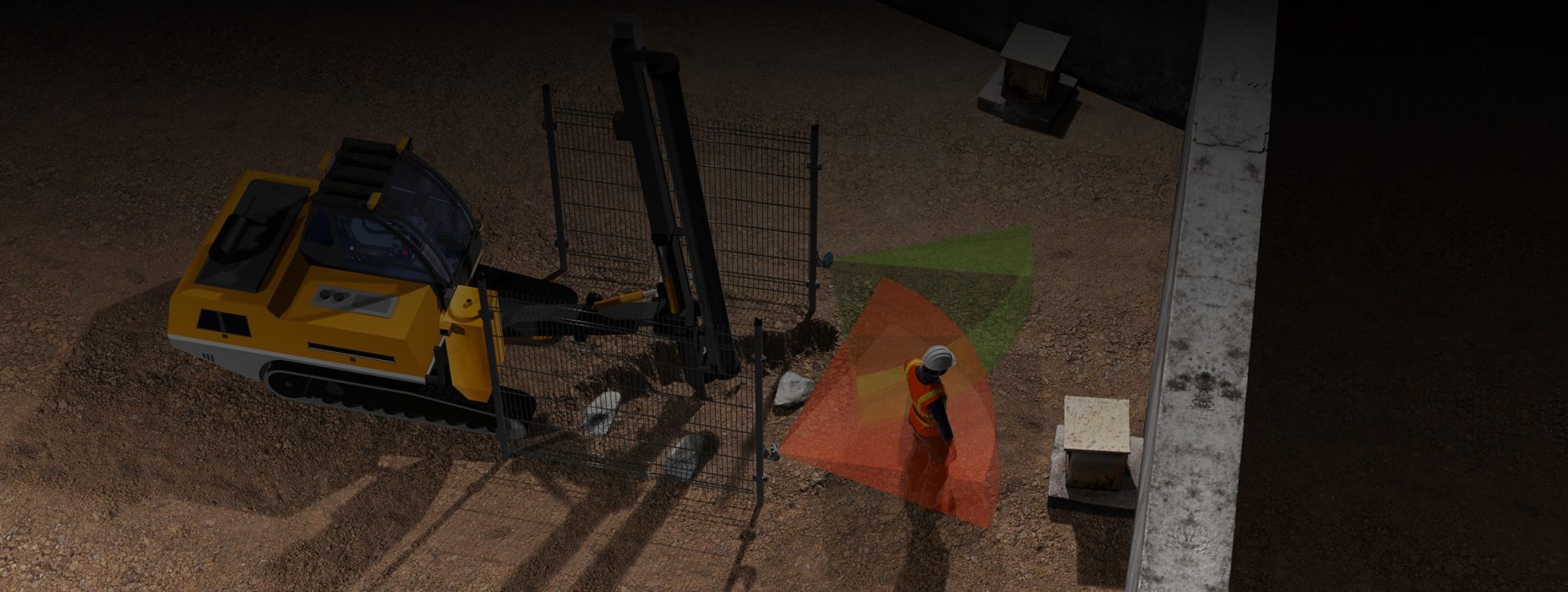

Inxpect products s203a wt image use cases 1

Safety functions

Access detection

First safety function: a 3D, configurable virtual barrier with two different detection fields, providing a secure signal to control machinery.

Restart prevention

Second safety function: safe presence sensing to prevent machinery from starting as long as operators are in dangerous areas.

Four configurable detection fields

Each sensor supports up to four different detection fields in 3D, each with a different safety output.

Classic or Corridor FOV

You can choose to use a Classic FOV or a Corridor FOV (with the sides cut off where required by the application), both can be configured with symmetrical or asymmetrical shape.

Static object detection

This option allows to detect static objects in the area where the restart prevention safety function is activated. This prevents the mobile device from restarting when there are obstacles in the area.

“On-field” reconfiguration of the FOV

The Teach-In function sets the range of the last detection field according to the distance of the nearest static target detected inside a predetermined volume called "learning area".

Robust to environmental disturbances

A radar sensor is extremely resistant to environmental disturbances. This makes it possible to work without false alarms in environments where there is smoke, dust, water and machining swarf.

Restart timeout

4s is the minimum time needed to perform the Restart Prevention safety function.

Technical details

RADAR SENSOR 200 SERIES (S203A-WT)

Frequency	Millimeter waves V-band: 60 GHz
Connectors	Two 5-pin M12 connectors (1 male and 1 female)
CAN bus termination resistance	120 Ω (not supplied, to be installed with termination connector)
Power supply	12 V dc ± 20%, through control unit
Power consumption	2.2 W
Degree of protection	IP67
Operating temperature	From -30 to +60 °C (-22 to +140 °F)
Case material	Sensor: PA66 (front) + Aluminum (back) \| Bracket: PA66 and glass fiber (GF)
