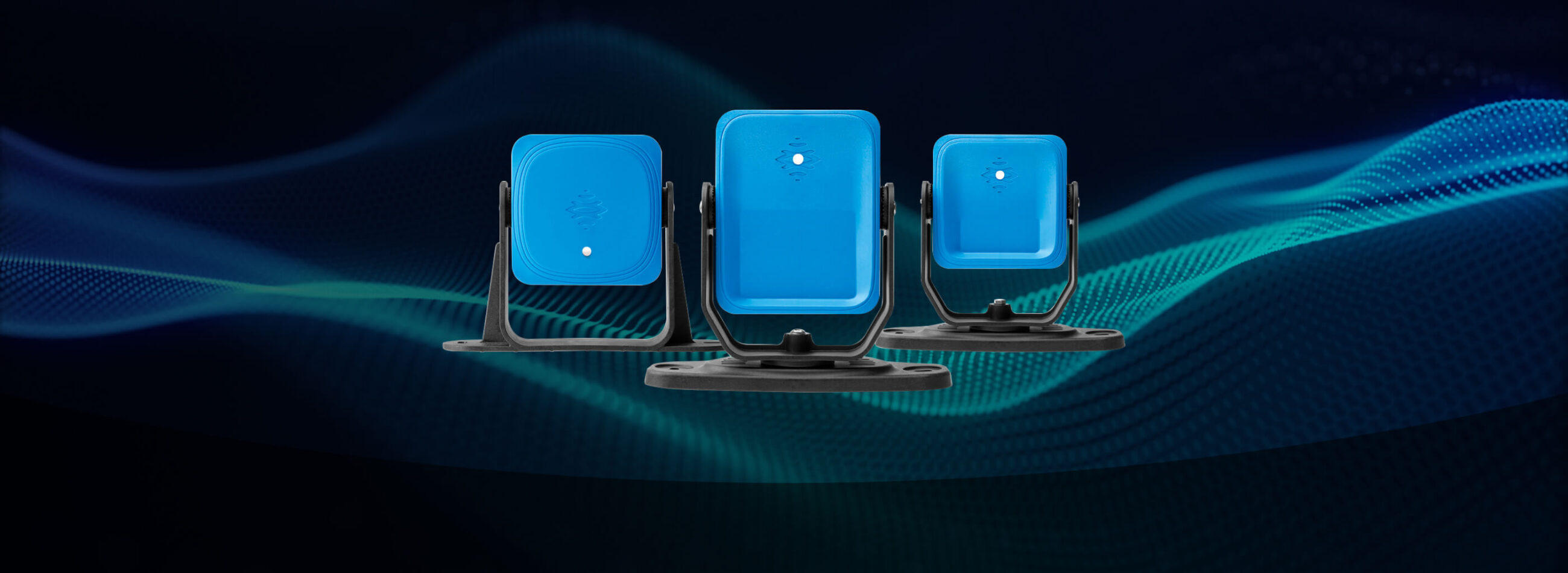

Smart Sensors
World’s first and only SIL2/PLd and
UL Listed safety radar products.
UL Listed safety radar products.

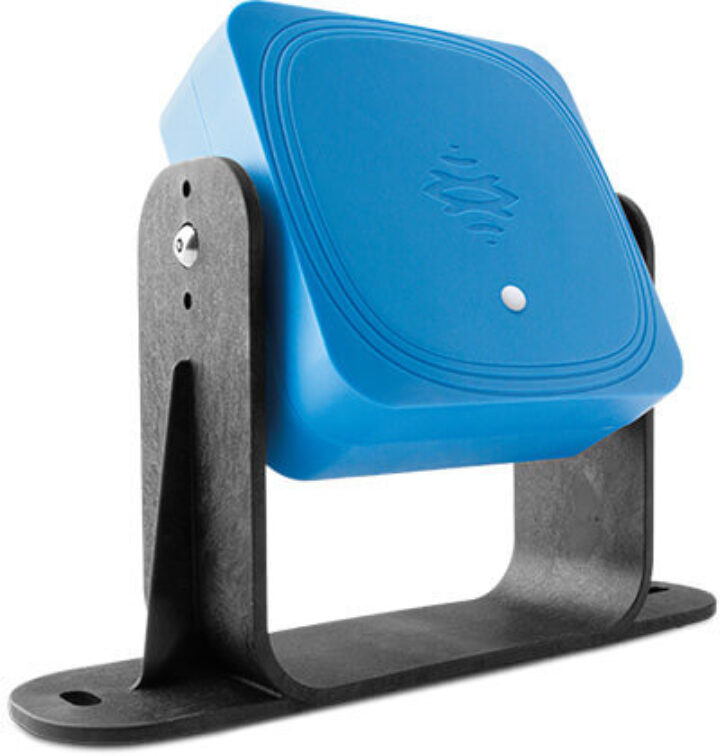

TWO CONFIGURABLE FIELDS OF VIEW (FOV): WIDE OR NARROW

Wide
Horizontal Plane: 110°
Vertical Plane: 30°
Narrow
Horizontal Plane: 50°
Vertical Plane: 15°
-
Min. configurable distance: 1 m
Restart time: 10s
Two fixed detection fields (angles can only be wide or narrow)

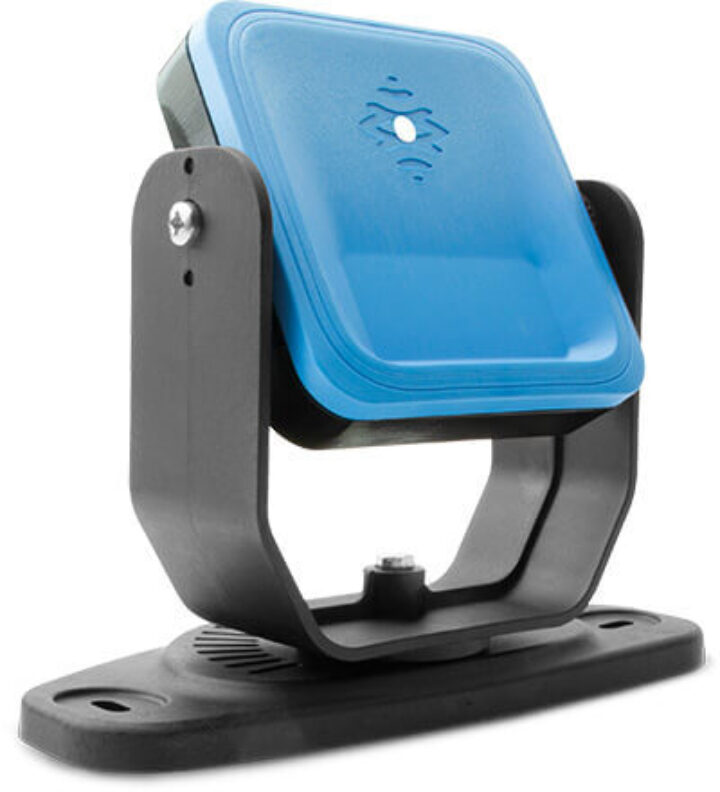

THE FIRST MULTI-AREA,
DYNAMIC-FIELD 3D SAFETY RADAR
DYNAMIC-FIELD 3D SAFETY RADAR

0.5 - 5m
Horizontal Plane: 10-100°
Vertical Plane: 20
The aperture of each field is dynamically adjustable in 10° increments over a range of 10° to 100°.
Min. configurable distance: 0.5 m
Restart time: 4s
Four independent detection fields with freely adjustable angles (10°-100°) with a maximum total distance of 5 m.


Multi-area, dynamic field 3D safety radar.

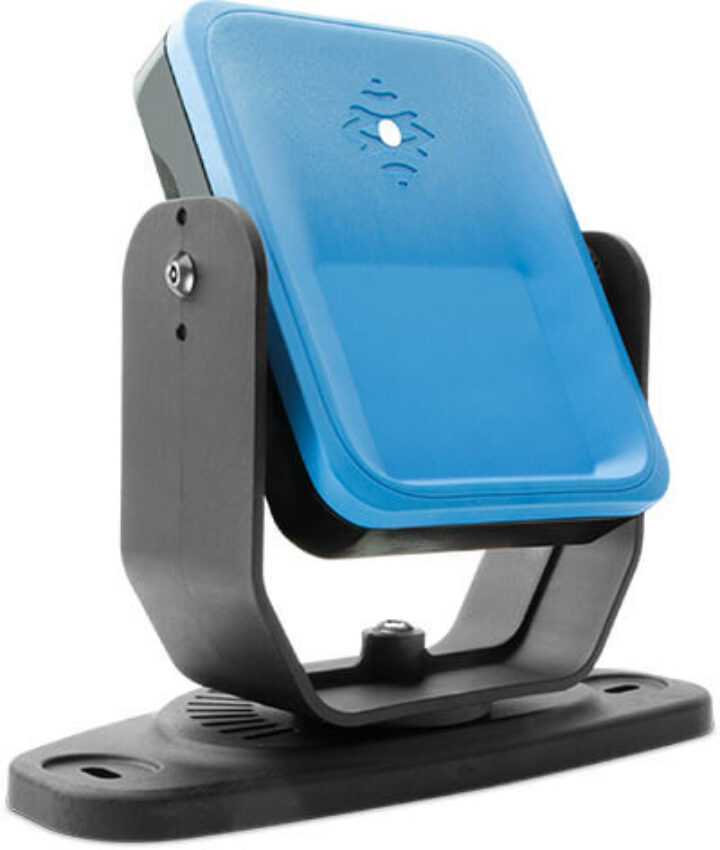

Extended range: 9 M
Extended range: 9 M

0.5 - 5m
Horizontal Plane: 10-100°
Vertical Plane: 20°
5m - 9m
Horizontal Plane: 10-40°
Vertical Plane: 20°
The aperture of each field is dynamically adjustable in 10° increments in a range: 10°-100° (0.5-5m) or 10°-40° (5-9m).
Min. configurable distance: 0.5 m
Restart time: 4s
Four independent detection fields with freely adjustable angles (10°-100° or 10°-40°) with a maximum total distance of 9 m.
