Accessories

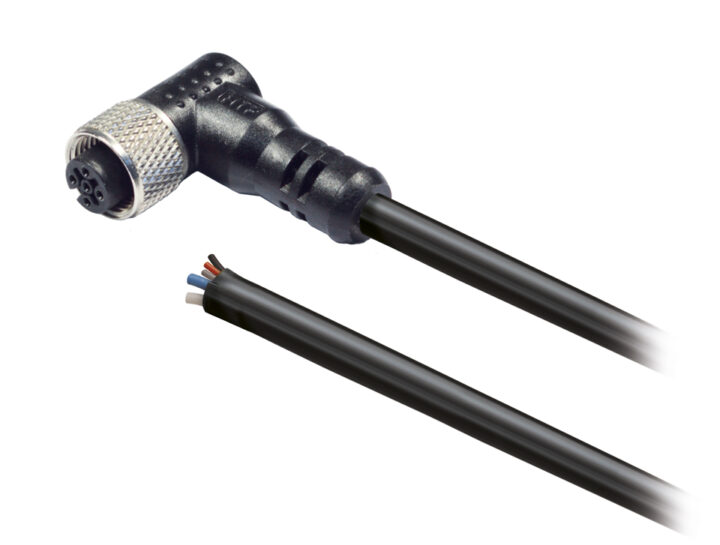

Cables: control unit to sensor

Control unit / sensor cable: CAN bus, totally shielded.
Control unit side: free wires
Sensor side: connector M12, female, 5 poles, A-coded, angled 90°

Length	Smart Sensor 100 SERIES	Smart Sensor 200 SERIES
5 m	Smart Sensor 100 SERIESPart No. 08000003	Smart Sensor 200 SERIESPart No. 08000110
10 m	Smart Sensor 100 SERIESPart No. 08000004	Smart Sensor 200 SERIESPart No. 08000111
15 m	Smart Sensor 100 SERIESPart No. 08000006	Smart Sensor 200 SERIESPart No. 08000112
20 m	Smart Sensor 100 SERIESPart No. -	Smart Sensor 200 SERIESPart No. 08000113

Which cables and lengths do you need for your system?
Find out with our utility: Cable Validator (Sign in to Inxpect Tools)

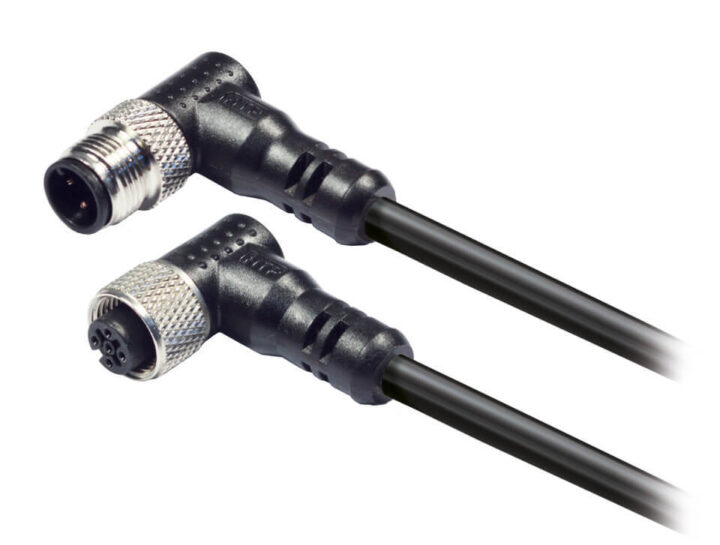

Cables: sensor to sensor

Sensor / sensor cable: CAN bus, totally shielded.
IN side: connector M12, female, 5 poles, A-coded, angled 90°
OUT side: connector M12, male, 5 poles, A-coded, angled 90°

Length	Smart Sensor 100 SERIES	Smart Sensor 200 SERIES
3 m	Smart Sensor 100 SERIESPart No. 08000007	Smart Sensor 200 SERIESPart No. 08000120
5 m	Smart Sensor 100 SERIESPart No. 08000013	Smart Sensor 200 SERIESPart No. 08000121
10 m	Smart Sensor 100 SERIESPart No. -	Smart Sensor 200 SERIESPart No. 08000122
15 m	Smart Sensor 100 SERIESPart No. 08000016	Smart Sensor 200 SERIESPart No. 08000123

Which cables and lengths do you need for your system?
Find out with our utility: Cable Validator (Sign in to Inxpect Tools)

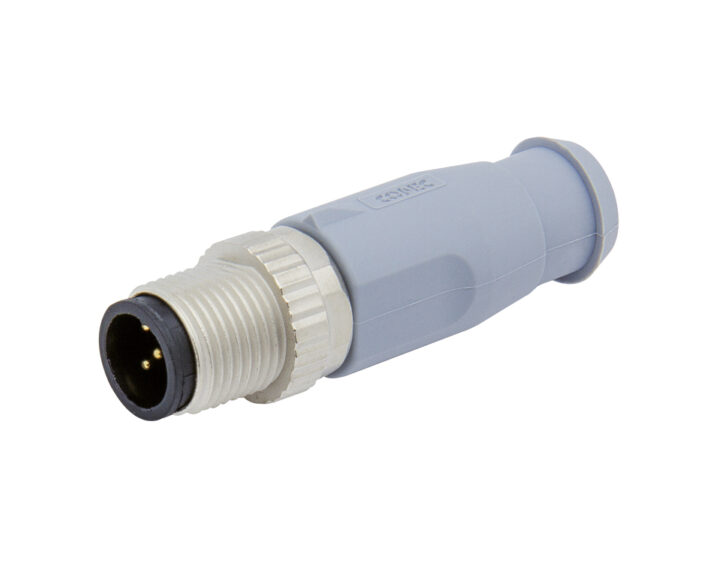

Bus Terminator

Bus terminator: M12, male, 5 poles, A-coded, straight 180°, resistance 120 Ω


Part No. 07000003

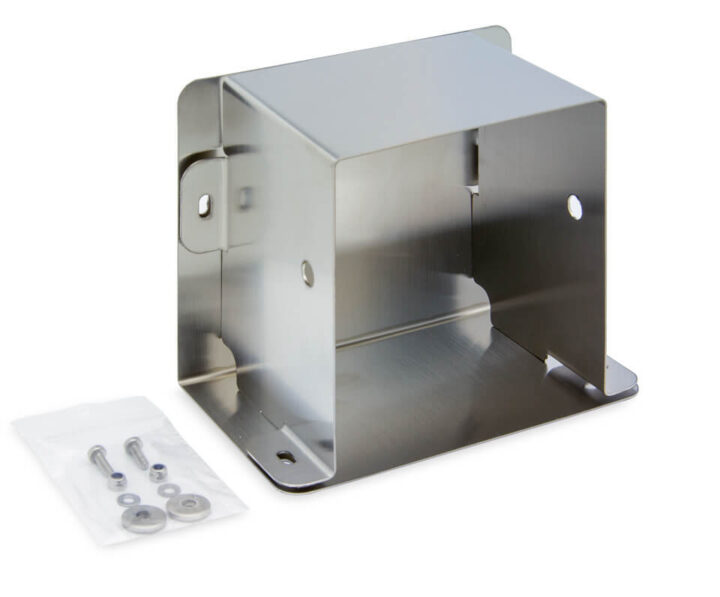

Protector kit

Stainless steel protector kit for S101A


Part No. 90202ZAA

Download tech specification Download assembly instructions

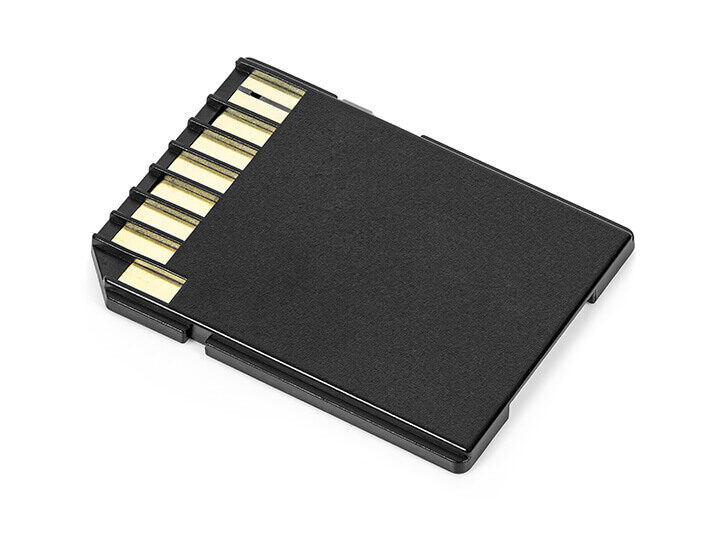

MicroSD card

MicroSD card for Control Units Type B


Part No. X0000011

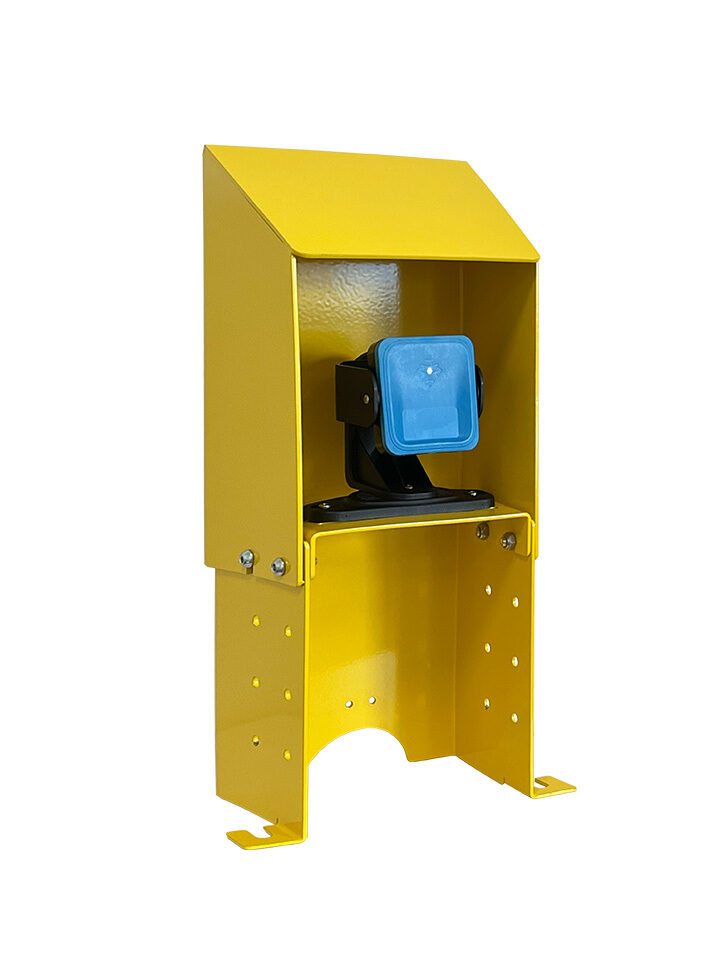

Indoor adjustable protector kit

This adjustable protector kit is used for installing Inxpect Smart Sensors in harsh indoor environments. The purpose of the support is to house the sensor at the desired height and protect it from the sides and from above.

Indoor version
30 degree slope downward
[RAL1021 powder coated metal]


Part No. 90302ZAC

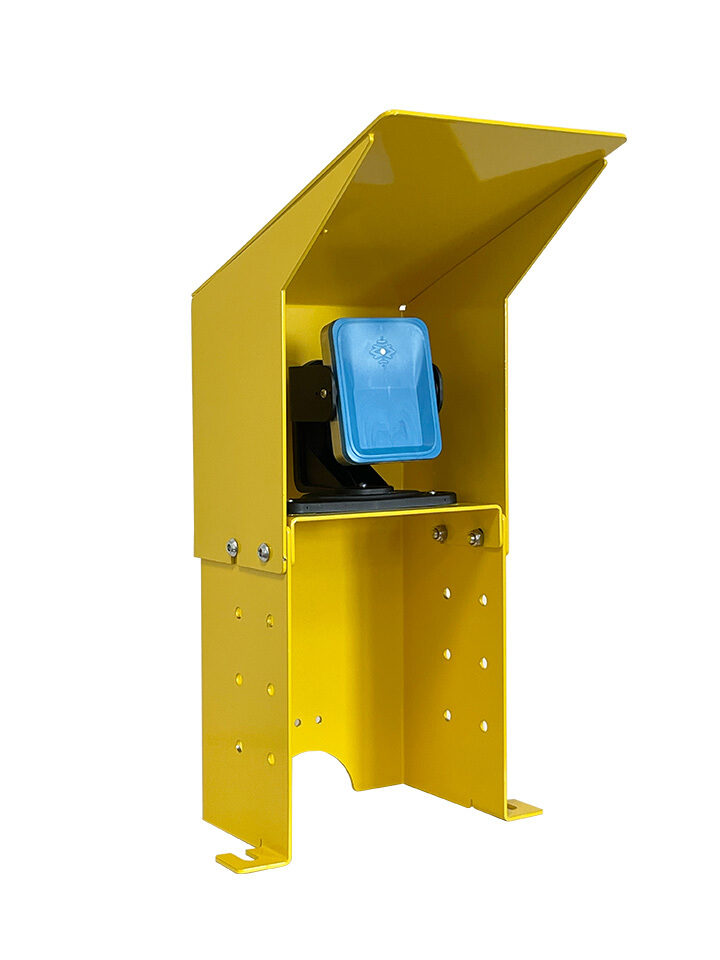

Outdoor adjustable protector kit

This adjustable protector kit is used for installing Inxpect Smart Sensors in harsh outdoor environments. The purpose of the support is to house the sensor at the desired height and protect it from the sides and from above.

Outdoor version
20 degree slope upward
[RAL1021 powder coated metal]


Part No. 90302ZAD
