S202A-MS Safeguarding
For an easy and straightforward access detection implementation in many applications
The S202A-MS sensor is specially designed for the Safeguarding function.
With this sensor, access control can be carried out easily and immediately in many applications. In fact, it only requires 2 parameters to configure, making it incredibly straightforward to set up.
With this sensor, access control can be carried out easily and immediately in many applications. In fact, it only requires 2 parameters to configure, making it incredibly straightforward to set up.
Easy to install

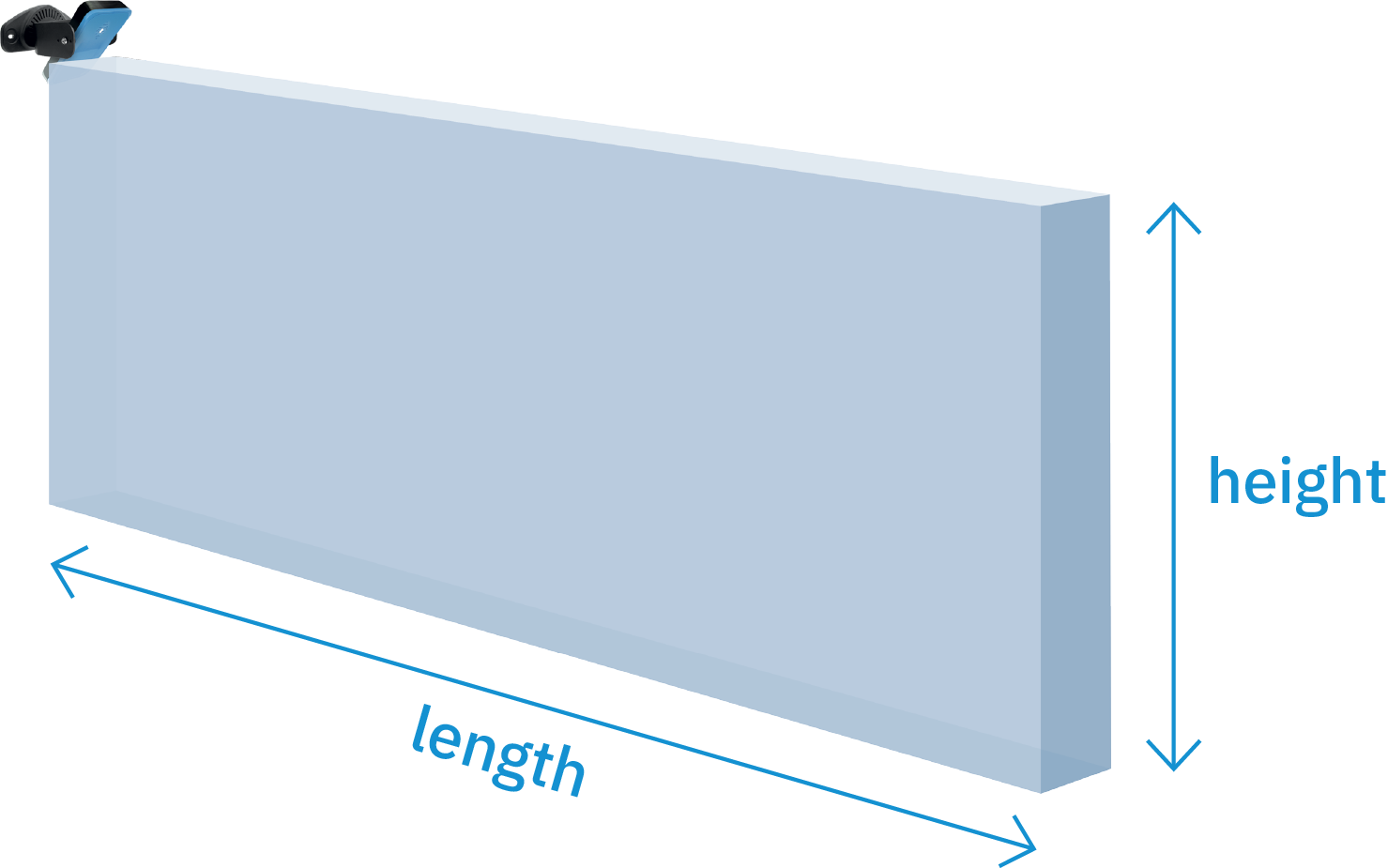

Configuration requires only 2 parameters: height and length.
Installation height from 100 cm to 250 cm (from Reference Plane). Width: -5cm, + 5cm (fixed). Max length: up to 4m.
Safeguarding

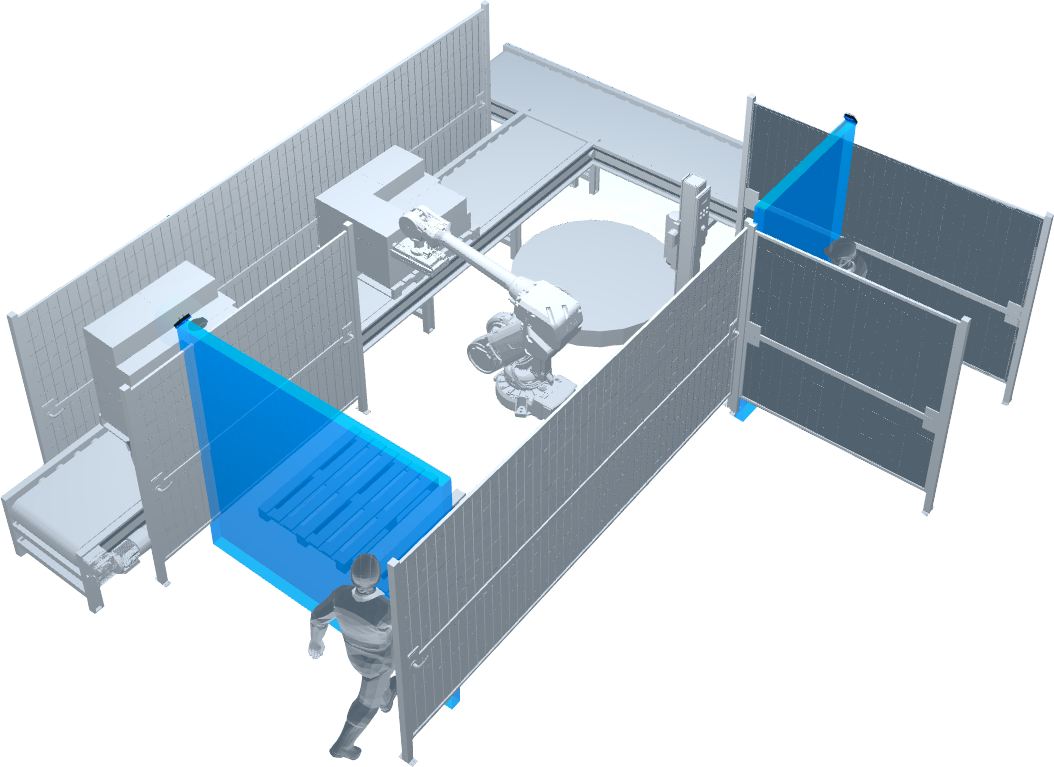

Use our radar as a virtual wall, safeguarding the hazardous areas.
Certified safety function
Maximum reliability
Increased productivity
Easy to install
The S202A-MS is designed to be easy to install and use: only 2 parameters are required.

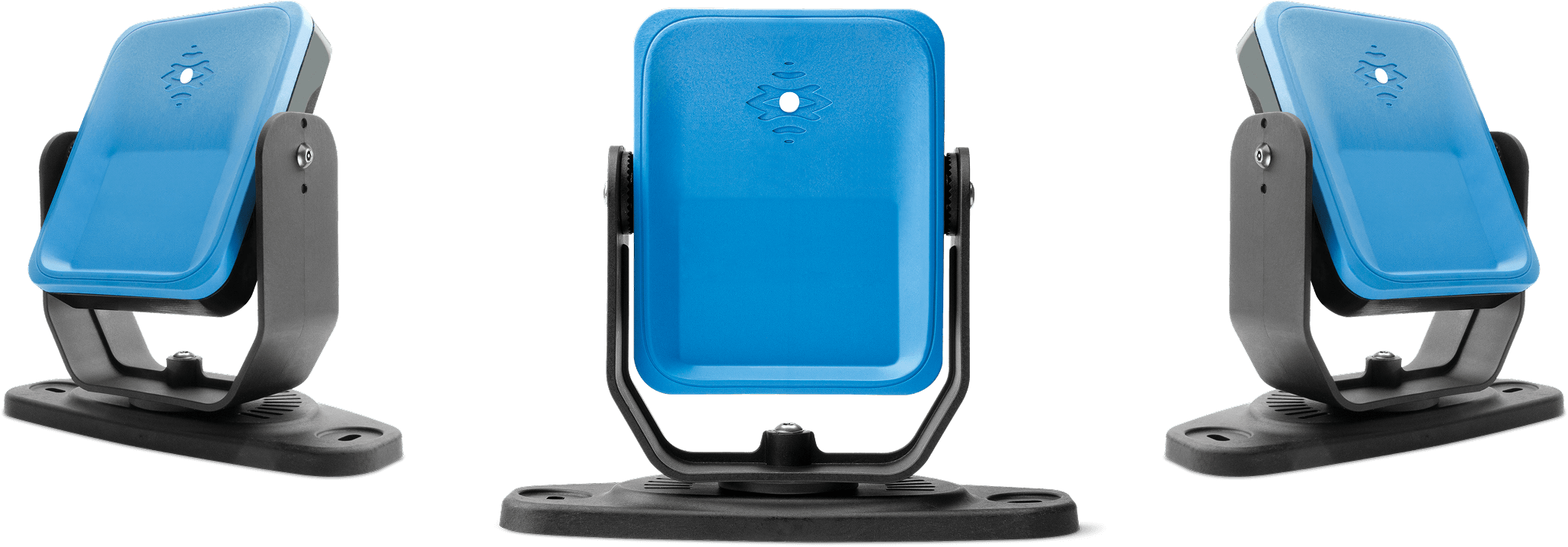

S202A-MS
Easy to install
Configuration requires only 2 parameters: HEIGHT and LENGTH
Safeguarding
Specially designed for the Safeguarding function
Certified
The S202A-MS sensor is the perfect solution to comply with EN ISO 10218-2
Configuring Inxpect sensors is faster and more intuitive than ever before
Inxpect Safety Studio is the new software for configuration and validation of Inxpect radar sensors. Explore 3D design!
Discover the Inxpect Safety Studio
Technical details
| RADAR SENSOR 200 SERIES (S202A-MS) | |
| Frequency | Millimeter waves V-band: 60 GHz |
| Connectors | Two 5-pin M12 connectors (1 male and 1 female) |
| CAN bus termination resistance | 120 Ω (not supplied, to be installed with termination connector) |
| Power supply | 12 V dc ± 20%, through control unit |
| Power consumption | 2.6 W |
| Degree of protection | IP67 |
| Operating temperature | From -30 to +60 °C (-22 to +140 °F) |
| Case material | Sensor: PA66 (front) + Aluminum (back) | Bracket: PA66 and glass fiber (GF) |
Dimensions
