S201A-WL
Corridor FOV, 9m range

9m
Range sensor
4s
Restart timeout
4m/s
Max target speed
20°
Vertical plane
RCS
Selectable

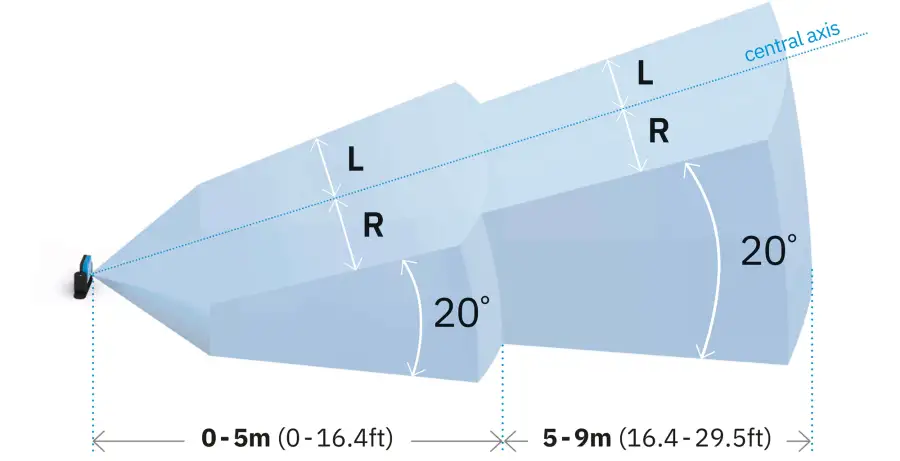

Corridor field of view (with symmetrical or asymmetrical shape) with extended range of 9m for greater modularity for all industrial applications.

Field of view
0 - 5m
[min. set distance: 0.2m]
Horizontal Plane: 10-100°
Vertical Plane: 20°

5 - 9m
Horizontal Plane: 10-40°
Vertical Plane: 20°

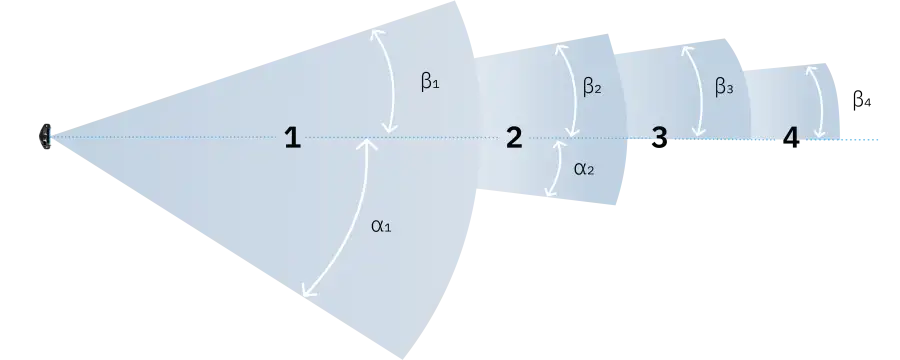

Classic FOV (with symmetrical or asymmetrical shape)
[0-5m] α: 0°-50° β: 0°-50°
[5-9m] α: 0°-20° β: 0°-20°
Corridor FOV (with symmetrical or asymmetrical shape)
[0-5m] L + R ≥ 20cm
[5-9m] L + R ≥ 30cm

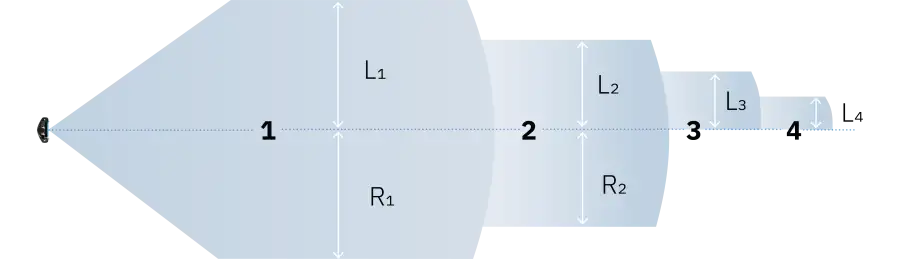

Four independent detection fields
Four, independent detection fields with freely adjustable angles with a maximum total distance of 9 m. The aperture of each field is dynamically adjustable in 5° increments over a range of 10° to 100° (between 0.5 and 5 m) and over a range of 10° to 40° (between 5 and 9 m).
Classic FOV (with symmetrical or asymmetrical shape)
α = β or α ≠ β
Corridor FOV (with symmetrical or asymmetrical shape)
L = R or L ≠ R

Quickly learn how to set up our products

These short tutorials are ready to unveil every aspect of our Radar Sensors. Watch, learn, and become an expert in no time.

Safety functions

Access protection

First safety function: a 3D, variable aperture virtual barrier with up to four different detection fields, providing a secure signal to control machinery.

Restart prevention

Second safety function: safe presence sensing to prevent machinery from starting as long as operators are in dangerous areas.

Access protection

First safety function: a 3D, variable aperture virtual barrier with up to four different detection fields, providing a secure signal to control machinery.

Restart prevention

Second safety function: safe presence sensing to prevent machinery from starting as long as operators are in dangerous areas.

Four configurable detection fields

Each sensor supports up to four different detection fields in 3D, each with a different safety output.

Classic or Corridor FOV

You can choose to use a Classic FOV or a Corridor FOV (with the sides cut off where required by the application), both can be configured with symmetrical or asymmetrical shape.

Static object detection

This option allows to detect static objects in the area where the restart prevention safety function is activated. This prevents the mobile device from restarting when there are obstacles in the area.

Speed

The S201A-WL supports higher speeds: it supports up to a maximum of 4 m/s. This feature is required by sectors like earth moving, railway, mining and agriculture.

Selectable RCS

The RCS of the target can be selected for human safety or collision with other object. The custom target detection is a safety function that allows detecting the access of one or more objects with specific RCS values.

Robust to environmental disturbances

A radar sensor is extremely resistant to environmental disturbances. This makes it possible to work without false alarms in environments where there is smoke, dust, water and machining swarf.

Restart timeout

4s is the minimum time needed to perform the Restart Prevention safety function.

Technical details

RADAR SENSOR 200 SERIES (S201A-WL)
Frequency Millimeter waves V-band: 60 GHz
Connectors Two 5-pin M12 connectors (1 male and 1 female)
CAN bus termination resistance 120 Ω (not supplied, to be installed with termination connector)
Power supply 12 V dc ± 20%, through control unit
Power consumption 2.2 W
Degree of protection IP67
Operating temperature From -30 to +60 °C (-22 to +140 °F)
Case material Sensor: PA66 (front) + Aluminum (back) | Bracket: PA66 and glass fiber (GF)
Dimensions
Sensing field
3 axes adjustment
